Minicircle DNA

Small, but powerful: the next-generation of backbone-free DNA vectors

Minicircle dna production

PlasmidFactory’s proprietary Minicircle technology enables the production of small, backbone-free, supercoiled DNA vectors that contain almost exclusively the gene of interest. Generated from a parental plasmid via site-specific intramolecular recombination, the bacterial backbone is precisely removed — resulting in a minimalistic, highly defined circular and supercoiled DNA molecule.

The reduced size and absence of bacterial backbone sequences enhance transfection efficiency, allow a safer regulatory profile, promote stronger and more stable transgene expression, and lower CpG-associated immunogenicity and DNA toxicity compared to “classical” plasmids. These features make Minicircle DNA particularly well suited for demanding applications such as cell and gene therapy, viral vector production (e.g., AAV), and vaccination approaches (e.g., as mRNA template).

Minicircle DNA is offered in the following quality grades: Scientific Quality Grade (CCC Grade with ≥95% supercoiled Minicircle DNA) supports advanced research applications requiring highly pure, backbone-free vectors. High Quality (HQ) Grade provides EMA-guideline-aligned material suitable for preclinical and early clinical programs, while GMP Grade enables late-stage clinical development and commercial supply.

PlasmidFactory’s Minicircle DNA has been successfully used in preclinical and clinical programs worldwide and is available from research scale to HQ and GMP manufacturing for advanced therapeutic applications.

Minicircle manufacturing service: Your key to innovation

Minicircle DNA ensures efficient transfection, high gene expression, and reduced toxicity. Ideal for CAR-T-cell production and viral vector optimization, it drives progress in clinical and biotech solutions.

Bacterial backbone-free, small, supercoiled:

  • No antibiotic resistance or other bacterial markers
  • Less immunogenicity
  • Lower DNA toxicity
  • Highter transfection efficiency
  • Reduced transgene silencing
  • Stronger, more stable gene expression
  • Almost no cargo size restriction
  • Improved yield – minimized costs
  • No retro-packaging in AAV production
  • Enables virus-free gene transfers
  • Proven in clinical trials

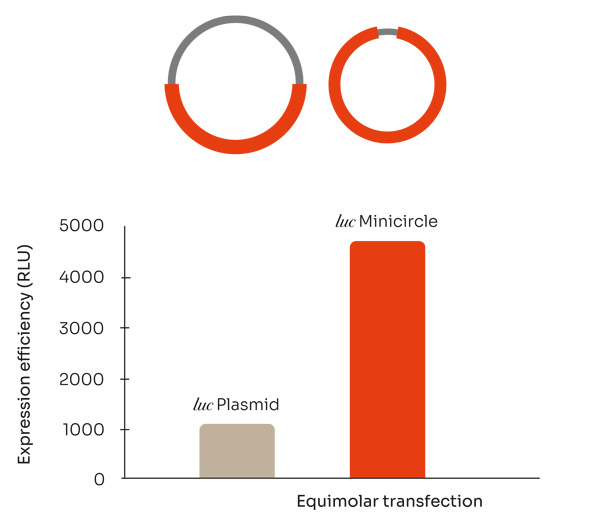

Comparison of expression efficiency between plasmid and minicircle DNA
minicircle dna

Proven in clinical trials

Minicircles have been evaluated in multiple comparative efficiency studies. In these studies, gene expression from Minicircle DNA consistently matched and, in most cases, significantly exceeded that of the corresponding plasmid containing the identical expression cassette.

Performance has been demonstrated across diverse cell types and multiple transfection protocols, including lipid nanoparticles (LNP), electroporation, lipofection, magnetofection, hydrodynamic injection, and jet injection.

More efficient. More stable. Safer.

Order McBox® to test Minicircle DNA vs. plasmid DNA in your experimental setting!

dna3_orange
mcbox-s

McBox® GFP

(Item no. PFBox102)

MC.CMV-GFP
(Minicircle, 100µg)

pCMV-GFP
(plasmid, 100µg)

WFI
(water for injection, 500µg)

McBox® luc

(Item no. PFBox101)

MC.CMV-luc
(Minicircle, 100µg)

pCMV-luc
(plasmid, 100µg)

WFI
(water for injection, 500µg)

McBox® lacZ

(Item no. PFBox103)

MC.CMV-lacZ
(Minicircle, 100µg)

pCMV-lacZ
(plasmid, 100µg)

WFI
(water for injection, 500µg)

Quote available on direct request

Order McBox® to test Minicircle DNA vs. plasmid DNA yourself!

Compare Minicircle DNA with the corresponding plasmid in your experimental setting!

The PlasmidFactory McBox® includes both the Minicircle and its parental plasmid, enabling direct comparative experiments under controlled laboratory conditions.

Compare Minicircle DNA with the corresponding plasmid in your experimental setting and optimize your transfection! The McBox® contains 100 µg each of certified Minicircle and plasmid DNA, both of which include the reporter gene.

The McBox® is currently available carrying the following reporters: firefly luciferase gene (luc), green fluorescent protein (GFP), and the ß-galactosidase gene (lacZ).

The McBox® provides scientists with the opportunity to directly compare Minicircle DNA and the corresponding conventional plasmid in specific applications in their own labs.

Our quality grades

Scalable plasmid and Minicircle DNA — from research to clinical manufacturing.

PlasmidFactory offers clearly defined quality grades to support every stage of your project — ensuring regulatory alignment, performance consistency, and seamless scale-up within one trusted CDMO.

Scientific Quality (SQ) Grade

Advanced research standard

  • Research Grade – reliable DNA for routine and advanced laboratory applications
  • CCC Grade – ≥95% supercoiled DNA for performance-critical and topology-sensitive workflows

High Quality (HQ) Grade

Highest non-GMP standard

  • EMA guideline-based manufacturing with validated methods and full traceability
  • Ideal for preclinical and early clinical starting material
  • Also available as HQ in GMP: produced in dedicated GMP facility using end-to-end single-use processes

GMP Grade

Clinical & commercial compliance

  • Manufactured in a dedicated EU GMP (Annex 1 & 2) compliant facility
  • End-to-end single-use USP & DSP processes and in-house QP release
  • Various fill & finish options
  • Designed for late-stage clinical trials and commercial supply
